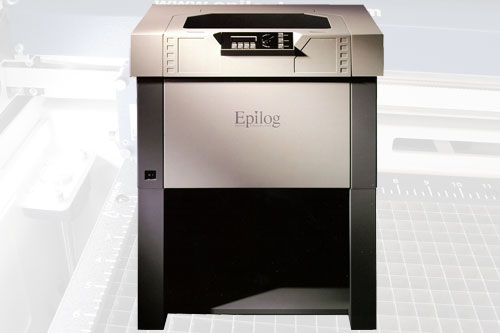

Technical specifications of our Summit Laser. The Summit Laser is a legacy system of Epilog Laser. See specifications on this unit below.
| Zona de gravare | 22" x 17" (558 x 431 mm) |
|
| Grosimea maximă a materialului | 7.5" (190 mm) | |
| Maximum Material Length | 36" (914 mm) | |
| Memory Buffer | 16 MB Rolling Buffer | |
| Laser | 25 watt CO2 laser | |
| Venting | External ventilation to the outside is required. | |
| Caracteristici electrice | 110/220 volt AC, 15 amp. | |
| Dimensions | 33" wide x 28" deep x 39" high (838 x 711 x 990 mm). | |
| Greutate | 150 lbs (68 kg). | |
| Siguranța | CDRH Class 1 enclosure. | |
| Interface | IBM: parallel printer port (LPT) with Windows 95/98. | |
| Options | Rotary attachment. | |
| Moduri de funcționare | Raster, vector or rubber stamp mode. |
